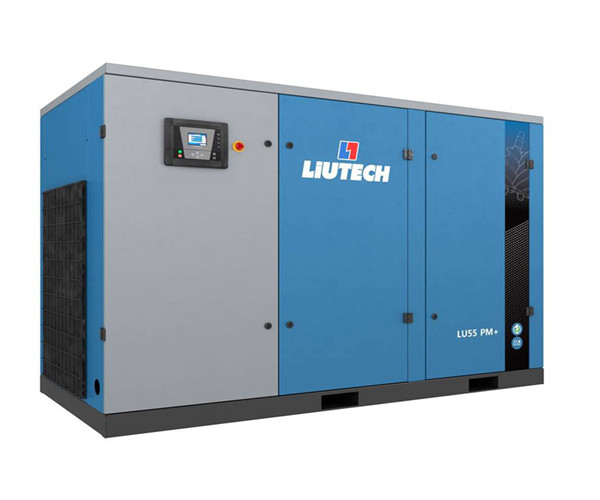

Stationary Air Screw Compressor LU55-PM+

LU PM Professional Air-cooled Permanent Magnet Frequency Converter Screw Compressor. Reasonable and coordinated layout least moving parts humanized component design mature models.

Motor Power

55KW

Outlet pressure

6-13Bar

Volume flow

1.6-11.4m³/min

Get a Quote +86 18568551860

Description
Reviews(1)

Technical Parameters

Oil Cooling Type

Model	Power(KW)	Pressure	Min FAD（m³/min）	Max FAD(m³/min）	Noise ab(A)	Weight(KG)	Outlet size	*Outline size(LWH)mm*
LU55-PM+	55KW	6-13bar	-	-	72	932	G2	226010601600
LU55-PM+	55KW	7bar	1.6	11.4	72	932	G2	226010601600
LU55-PM+	55KW	8bar	1.6	10.9	72	932	G2	226010601600
LU55-PM+	55KW	10bar	1.6	9.8	72	932	G2	226010601600
LU55-PM+	55KW	13bar	2.6	7.3	72	932	G2	226010601600

Wind Cooling Type

Model	Power(KW)	Pressure	Min FAD（m³/min）	Max FAD(m³/min）	Noise ab(A)	Weight(KG)	Outlet size	*Outline size(LWH)mm*
LU55-PM+	55KW	6-10bar	-	Max10.5	72	1000	G2	190010601600
LU55-PM+	55KW	7bar	1.9	10.4	72	1000	G2	190010601600
LU55-PM+	55KW	8bar	1.8	9.8	72	1000	G2	190010601600
LU55-PM+	55KW	10bar	1.8	8.8	72	1000	G2	190010601600

Performance Features

Excellent Overall Performance

Design, production and management belong to Atlas Copco Group,

which provides key components globally.

Environmental Protection

Accurate analysis of air flow inside the machine and rational use of silencer.

In the assembly process, the assembly of each component is controlled to ensure low noise during operation. Even if the machine is placed near the workplace or office, it will not cause discomfort to the human body.

Multiple improvement measures

High efficiency and energy saving atlas vacuum inlet valve, maintain lower unloading pressure (0.9bar), avoid high energy consumption of no-load operation.
Fan start-stop control automatically adjusts according to oil temperature to reduce energy consumption.

Energy Saving

With Atlas Copco original high efficiency screw air end, can save more than 5% energy than similar products in the market.

Convenient Maintenance

Reasonable layout, humanized design, mature model. No matter routine maintenance or malfunction maintenance, can be easily controlled.

Applications

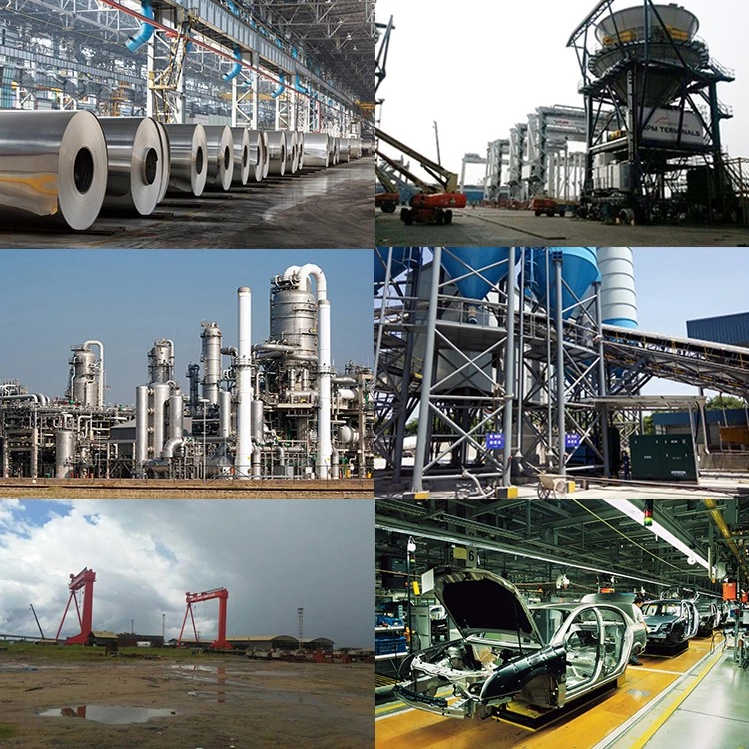

Air compressor as a general machine mianly used in many industries, such as oil &gas,shipyard,coating,blow molding,laser cutting,furniture,plastics,rubber,color sorter machine,painting etc.

Warranty & After-sales Services
