Stationary Air Screw Compressor LU75-Xinxiang Aida Machinery Equipment Corporation

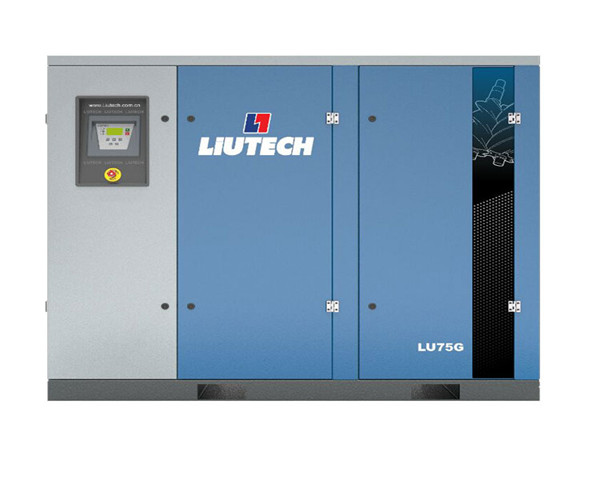

Stationary Air Screw Compressor LU75

LU GP series screw compressor relying on advanced European original technology of the group company is designed to enhance the cooling and dust removal system for various complex environmental projects.

Motor Power

75KW

Outlet pressure

7-13Bar

Volume flow

10.65-14.95m³/min

Get a Quote +86 18568551860

Description
Reviews(1)

Technical Parameters

Mode	Outlet pressure Mpa	Volume flow m³/min	Motor power KW	Noise Level dB(A)	Weight Kg	Outlet sizes	Dimensions LWH mm
LU75-7GP	0.7	14.95	75	69	1535	G2	226910601600
LU75-8GP	0.8	14.15	75	69	1535	G2	226910601600
LU75-10GP	1.0	12.67	75	69	1535	G2	226910601600
LU75-13GP	1.3	10.65	75	69	1535	G2	226910601600

Performance Features

Excellent Overall Performance

Design, production and management belong to Atlas Copco Group,

which provides key components globally.

Environmental Protection

Accurate analysis of air flow inside the machine and rational use of silencer.

In the assembly process, the assembly of each component is controlled to ensure low noise during operation. Even if the machine is placed near the workplace or office, it will not cause discomfort to the human body.

Multiple improvement measures

High efficiency and energy saving atlas vacuum inlet valve, maintain lower unloading pressure (0.9bar), avoid high energy consumption of no-load operation.
Fan start-stop control automatically adjusts according to oil temperature to reduce energy consumption.

Energy Saving

With Atlas Copco original high efficiency screw air end, can save more than 5% energy than similar products in the market.

Convenient Maintenance

Reasonable layout, humanized design, mature model. No matter routine maintenance or malfunction maintenance, can be easily controlled.

Applications

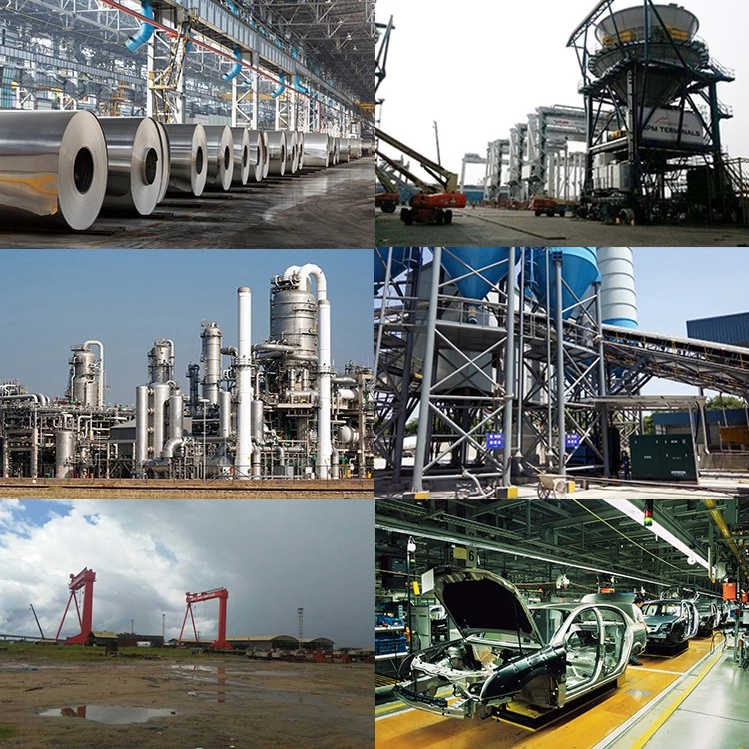

Air compressor as a general machine mianly used in many industries, such as oil &gas,shipyard,coating,blow molding,laser cutting,furniture,plastics,rubber,color sorter machine,painting etc.

Warranty & After-sales Services
