Stationary Air Screw Compressor LU37-Xinxiang Aida Machinery Equipment Corporation

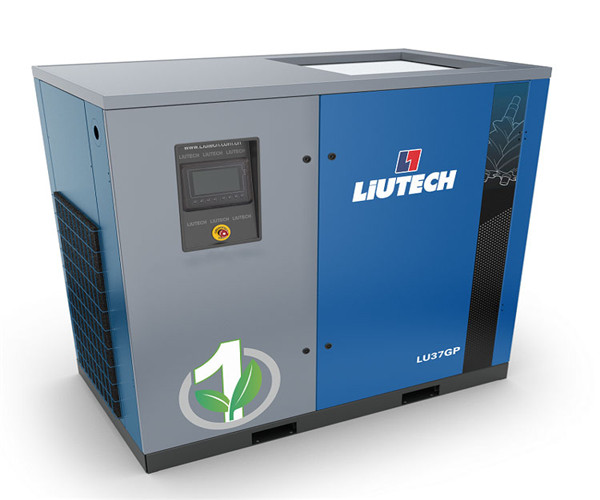

Stationary Air Screw Compressor LU37

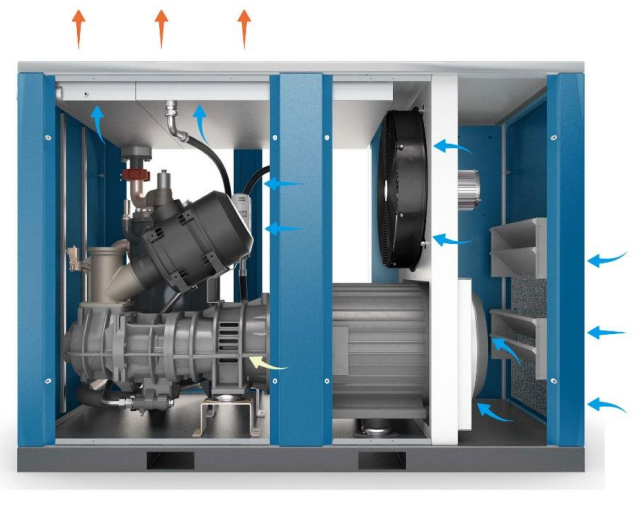

LU GP series screw compressor relying on advanced European original technology of the group company is designed to enhance the cooling and dust removal system for various complex environmental projects.

Motor Power

37KW

Outlet pressure

7-13Bar

Volume flow

5.15-7.28m³/min

Get a Quote +86 18568551860

Description
Reviews(1)

Technical Paramters

Mode	Outlet pressure Mpa	Volume flow m³/min	Motor power KW	Noise Level dB(A)	Weight Kg	Outlet sizes	Dimensions LWH mm
LU37-7GP	0.7	7.28	37	67	850	G1 1/2	17209801700
LU37-8GP	0.8	6.77	37	67	850	G1 1/2	17209801700
LU37-10GP	1.0	6.13	37	67	850	G1 1/2	17209801700
LU37-13GP	1.3	5.15	37	67	850	G1 1/2	17209801700

Performance Features

Intelligent Control System

1) Group independent patent research and development, touch screen control
2) Standard with intelligent interconnection system of the group, check the operation of equipment anytime and anywhere

Deal with Bad Working Conditions

1) IP55 level motor protection
2) Provide prefilter screen cover protection
3) Vacuum inlet valve
4) Heavy duty nanometer air filter is optional

Easy Maintenance

1) Larger tank space, optimized refueling and discharging design, reduced maintenance time
2) Optimize gas separation system
3) Optimize and enlarge pipeline to reduce pressure drop

Applications

Air compressor as a general machine mianly used in many industries, such as oil &gas,shipyard,coating,blow molding,laser cutting,furniture,plastics,rubber,color sorter machine,painting etc.

Warranty & After Sales Service
