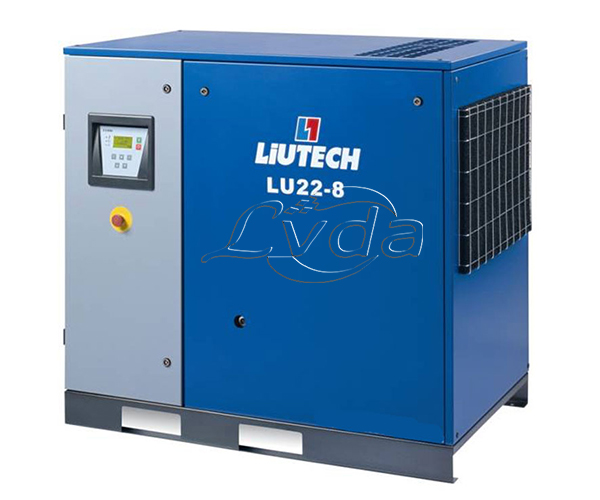

Screw Compressor LU22-8
Technical Parameters
| Mode | Outlet pressure Mpa | Volume flow m³/min | Motor power KW | Noise Level dB(A) | Weight Kg | Outlet sizes | Dimensions L*W*H mm |
| LU22-7 | 0.7 | 3.55 | 22KW | 69 | 400KG | G1 | 1215*930*1310 |
| LU22-8 | 0.8 | 3.45 | |||||
| LU22-10 | 1.0 | 2.95 | |||||
| LU22-13 | 1.3 | 2.35 |
Performance Features
Excellent Overall Performance
Design, production and management belong to Atlas Copco Group.
which provides key components globally.
Environmental Protection
Accurate analysis of air flow inside the machine and rational use of silencer.
In the assembly process, the assembly of each component is controlled to ensure low noise during operation. Even if the machine is placed near the workplace or office, it will not cause discomfort to the human body.
Multiple improvement measures
High efficiency and energy saving atlas vacuum inlet valve, maintain lower unloading pressure (0.9bar), avoid high energy consumption of no-load operation.
Fan start-stop control automatically adjusts according to oil temperature to reduce energy consumption.
Energy Saving
With Atlas Copco original high efficiency screw air end, can save more than 5% energy than similar products in the market.
Convenient Maintenance
Reasonable layout, humanized design, mature model. No matter routine maintenance or malfunction maintenance, can be easily controlled.
Applications
Air compressor as a general machine mianly used in many industries, such as oil &gas,shipyard,coating,blow molding,laser cutting,furniture,plastics,rubber,color sorter machine,painting etc.
