Low Pressure Screw Air Compressor

In many industries such as chemical industry petroleum textile ceramics and bearing manufacturing the working pressure of compressed air is only 0.3-0.5mpa.LIUTECH low pressure screw compressor is your choice.

Motor Power

110-132KW

Outlet pressure

5Bar

Volume flow

10.5-29.6m³/min

Get a Quote +86 18568551860

Description
Reviews(1)

Technical Paramters

Mode	Outlet pressure Mpa	Volume flow m³/min	Motor power KW	Noise Level dB(A)	Weight Kg	Outlet sizes	Dimensions LWH mm
LU110-5	0.5	25.9	110	77	3240	DN100	284517501930
LU110-5 IVR	0.5	10.65-26.2	110	77	3580	DN100	284517501930
LU132-5	0.5	29.1	132	77	3300	DN100	284517501930
LU132-5 IVR	0.5	11.7-29.6	132	77	3580	DN100	284517501930

Performance Features

Intelligent Control System

1) Group independent patent research and development, touch

screen control
2) Standard with intelligent interconnection system of the group, check the operation of equipment anytime and anywhere

Deal with Bad Working Conditions

1) IP55 level motor protection
2) Provide prefilter screen cover protection
3) Vacuum inlet valve
4) Heavy duty nanometer air filter is optional

Easy Maintenance

1) Larger tank space, optimized refueling and discharging design, reduced maintenance time
2) Optimize gas separation system
3) Optimize and enlarge pipeline to reduce pressure drop

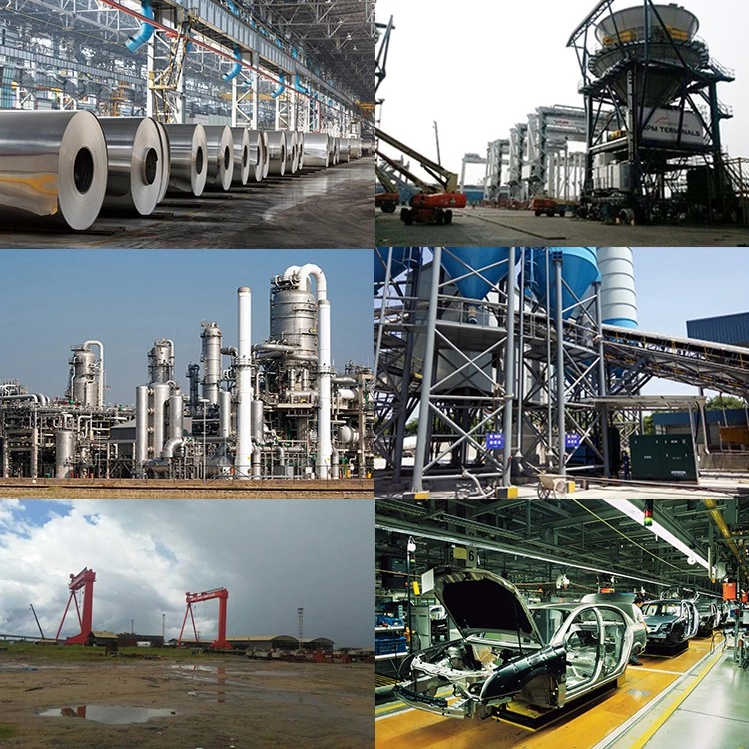

Applications

In many industries such as chemical industry, petroleum, textile, ceramics and bearing manufacturing, the working pressure of compressed air is only 0.3-0.5mpa. However, at present, these industries are generally used 0.7-1.0Mpa of the air compressor with pressure relief valve or lower pressure to use, which is undoubtedly a huge waste of energy. For this purpose, LIUTECH has customized variable frequency low pressure screw compressor for these industries, which can directly output the low pressure air you need.
