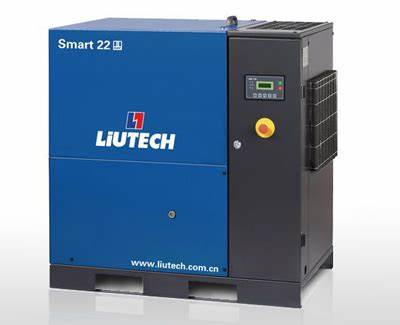

Smart Series Air Screw Compressor

Air compressor as a general machine mianly used in many industries, such as oil &gas,shipyard,coating,blow molding,laser cutting,furniture,plastics,rubber,color sorter machine,painting etc.

Motor Power

5-30KW

Outlet pressure

7-13Bar

Volume flow

0.51～4.1m3/min

Get a Quote +86 18568551860

Description
Reviews(1)

Technical Parameters

Air cooling type	Woking pressure	Air delivery	Motor power	Weight	Noise	Outlet size	Dimension L×W×H
	Woking pressure	Air delivery	Motor power	Weight	Noise	Outlet size	Dimension L×W×H
	MPa	m3/min	kw	kg	dB(A)		mm
Smart 5/7	0.7	0.78	5.5	225	66	G1	853×645×1100
Smart 5/8	0.8	0.76
Smart 5/10	1	0.63
Smart 5/13	1.3	0.51
Smart 7/7	0.7	1.12	7.5	230	66
Smart 7/8	0.8	1.1
Smart 7/10	1	0.96
Smart 7/13	1.3	0.74
Smart 11/7	0.7	1.75	11	245	66
Smart 11/8	0.8	1.6
Smart 11/10	1	1.42
Smart 11/13	1.3	1.1
Smart 15/7	0.7	2.5	15	350	67		1100×780×1170
Smart 15/8	0.8	2.4
Smart 15/10	1	2
Smart 15/13	1.3	0.51
Smart 18/7	0.7	3	18.5	380	69
Smart 18/8	0.8	2.9
Smart 18/10	1	2.55
Smart 18/13	1.3	2
Smart 22/7	0.7	3.55	22	400	69
Smart 22/8	0.8	3.5
Smart 22/10	1	3
Smart 22/13	1.3	2.21

Performance Features

Energy-saving

Atlas copco group equipped with the original screw mainframe, compared with similar products in the market, energy saving 5%

Low Noise Level

Reasonable layout, reasonable use of sound-absorbing panels, eliminate vibration during operation as much as possible, and ensure that the machine runs with low noise.

Reliable Operation

There is no need to install a special cooling fan to reduce moving parts, reduce the failure rate, and make the machine run more reliably.

Easy Operation

Complete control, adjustment, and protection functions. The computer controller with full Chinese display clearly shows the performance and status parameters of the compressor.

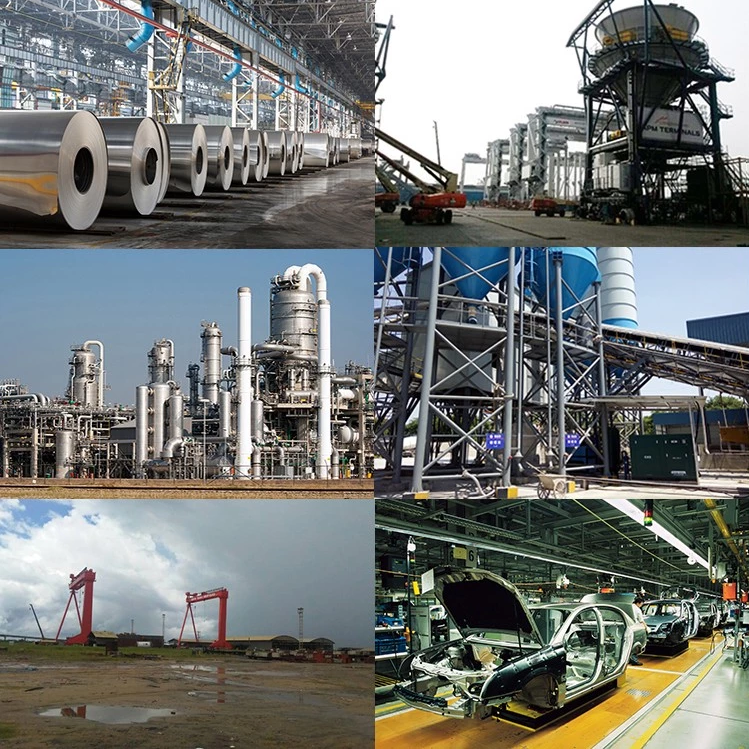

Applications

Air compressor as a general machine mianly used in many industries, such as oil &gas,shipyard,coating,blow molding,laser cutting,furniture,plastics,rubber,color sorter machine,painting etc.
