Technical Parameters
|
Model |
Max working pressure |
Standard pressure |
Exhaust volume |
Motor power |
Noise level |
Weight |
Exhaust Port Size |
|
|
Bar |
Bar |
M3/h |
I/S |
CFM |
kw |
hp |
db(a) |
(kg) |
” |
|
LUW75 |
7.5 |
7 |
504 |
140.0 |
296.6 |
55 |
75 |
72 |
1497 |
1 1/2 |
|
LUW75 |
10 |
9.5 |
426 |
118.3 |
250.7 |
55 |
75 |
72 |
1497 |
1 1/2 |
|
LUW75 |
13 |
12.5 |
354 |
98.3 |
208.4 |
55 |
75 |
72 |
1497 |
1 1/2 |
Performance Features
Oil-free High Quality
100% oil-free clean compressed air
Built-in dryer to ensure compressed air drying and prevent pipeline corrosion
High Effciency and Energy Saving
Low exhaust temperature ensures ultra-high compression efficiency
Optimized rotor performance parameters
Hydraulic suspension bearing, no friction loss
Direct drive technology, no drive chain loss
Built-in frequency conversion technology, compressed air demand and supply are perfectly matched to avoid unloading loss
Full color screen graphics controller with built-in energy-efficient control logic
Stable and Reliable
Wear-free hydraulic suspension bearing
Durable special materials reject any corrosion risk
Variable frequency soft start greatly reduces the starting impact of the main screw

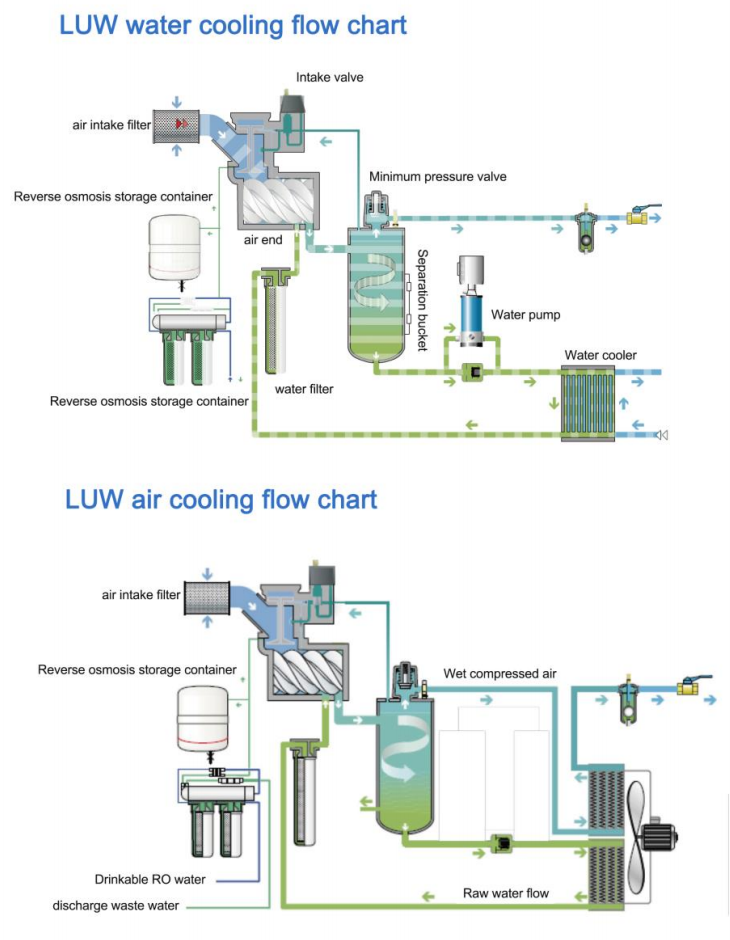

Workflow Chart
